Concrete Anchor (Engineering Document)

Concrete Safety Anchor

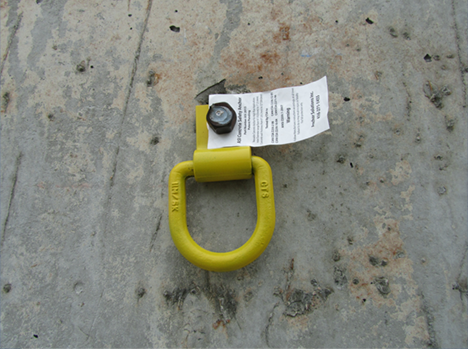

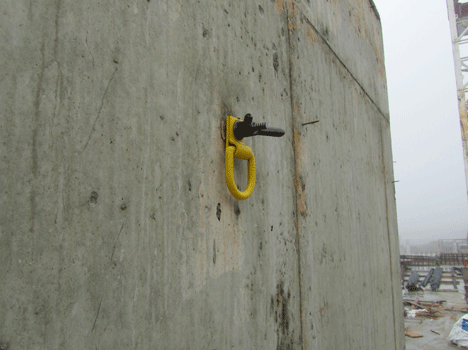

The Concrete Safety Anchor is made up of hardened Steel components. The Anchor is designed to be installed in the wall after the forming material has been removed. The B39 Wing Nut and steel D-Ring are removed from one end. The Adjustable Coil bolt is pushed through existing holes on one side of the wall created by the forms. The D-Ring is then placed back on the Coil Bolt with the B39 Wing Nut and entire anchor is tightened firmly. Available in ½" or ¾" diameter coil rod.


Reusable Concrete Safety Anchor for High Rise Applications The hole Diameter range from 1/2" (12.7mm) to 1" (25.4mm) Concrete wall thickness from 8" (203.2mm) to 20" (508mm) Part Number ASI 2013 Patent Pending Tested By CSA to CAN/CSA Z259.2 98 CAN/CSA Z259.12-01CAN/CSA Z259.16-04 CAN/CSA Z271-98 ANSI Z359.1-2007 Warning: Follow manufactures instructions accordingly. Failure to do so may result in injury or fatality. For fall protection only
